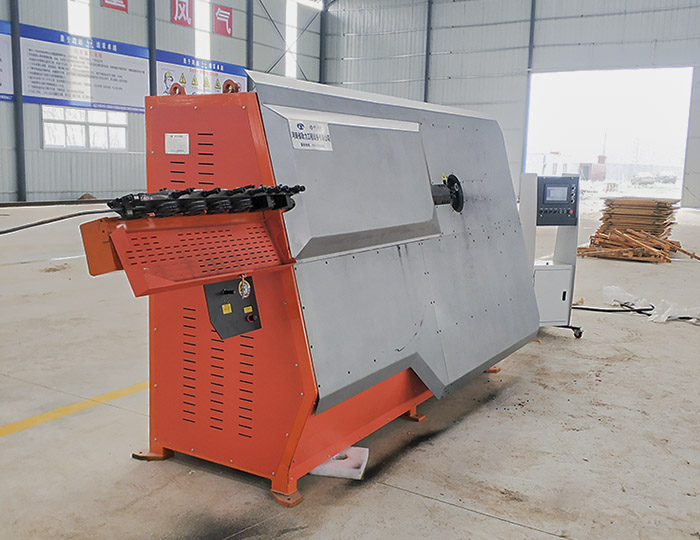

SWG12 CNC Stirrup bending machine
- Single line processing capacity：φ4-12mm
- Two-line processing capacity：φ5-10mm
- Bending angle：＜±180°
- Length accuracy：±1mm
Applied range:It is suitable for straightening, bending and shearing HRB335 hot-rolled ribbed steel bars, HRB400 hot-rolled ribbed steel bars, smooth round steel bars and cold-rolled ribbed steel bars with a diameter of φ4-φ12mm.
Related products
Hydraulic combined punching and shearing machine
- Punching force(T)：90、120、160
- Maximum shear thickness (mm)：20、25、30
- Maximum punching diameter (mm)：30、35、38
- Stroke times(min)：12、10、10
Applied range:It is used for steel bar processing plants, tunnels, bridges and other projects of highways and high-speed railway projects, and is suitable for processing steel plates, angle irons, channel steels, and round steels.
HGS-40F Steel bar straight thread rolling machine
- Processing diameter range：φ16-φ40mm
- Maximum thread length：80mm
- Spindle speed：40- 60r/min
- Main motor power：3 - 4KW
Applied range:It is used to process rolled straight threaded thread heads for auxiliary steel bars in construction engineering, and can process HRB335 and HRB400 ribbed steel bars with a diameter of 16-40mm.
GL4-16A CNC Hydraulic Bar Straightening and Cutting Machine
- Straightening diameter range：Ф4-16mm
- Traction speed：45m/min,48m/min
- Fixed length：300-9000mm（can be lengthened）
- Cutting length tolerance ：±10mm
Applied range:Mainly used for straightening and cutting to length, suitable for cold-rolled grade III steel bars, cold-rolled round steel bars for construction, and adjustable straight hot-rolled round steel bars.
GL4-12 Steel bar straightening and cutting machine
- Straightening diameter range：Ф4-12mm
- Traction speed：45m/min,48m/min
- Fixed length：300-9000mm（can be lengthed）
- Cutting length tolerance：±10mm
Applied range:Mainly used for straightening and cutting to length, suitable for cold-rolled grade III steel bars, cold-rolled round steel bars for construction, and adjustable straight hot-rolled round steel bars.
GL-450L CNC steel bar sawing, upsetting, threading and polishing production line
- Maximum machining diameter (round steel): ≤ 50 mm
- Rebar conveyor speed: 58-62m/min
- Thread length: ≤90 mm
- Total power/total power consumption: 40 Kw
- Single-end threading time: 25S～40S
Applied range:The GL-450L CNC steel bar sawing, upsetting, threading and grinding production line is a highly automated steel bar processing equipment that integrates automatic storage, feeding, sizing, sawing, piercing, threading, grinding, locating, and grading storage. The maximum diameter of sawn steel bars is 50mm.
